| Specifications |

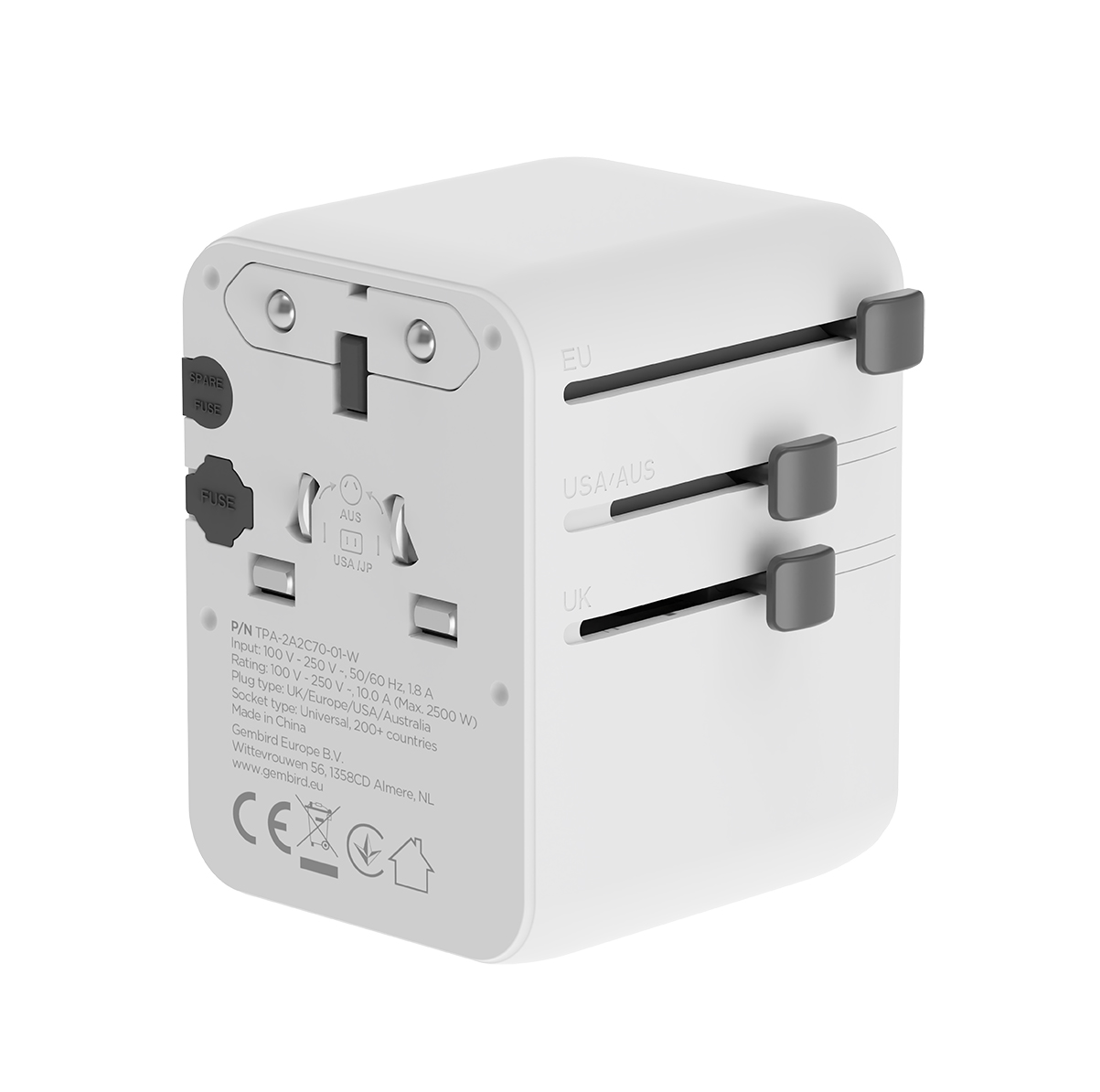

| Input: 100-250 V~, 50/60 Hz, 1.8 A |
| Rating: 100-250 V~,10.0 A (Max. 2500W) |
| Plug Type: UK/Europe/USA/Australia |

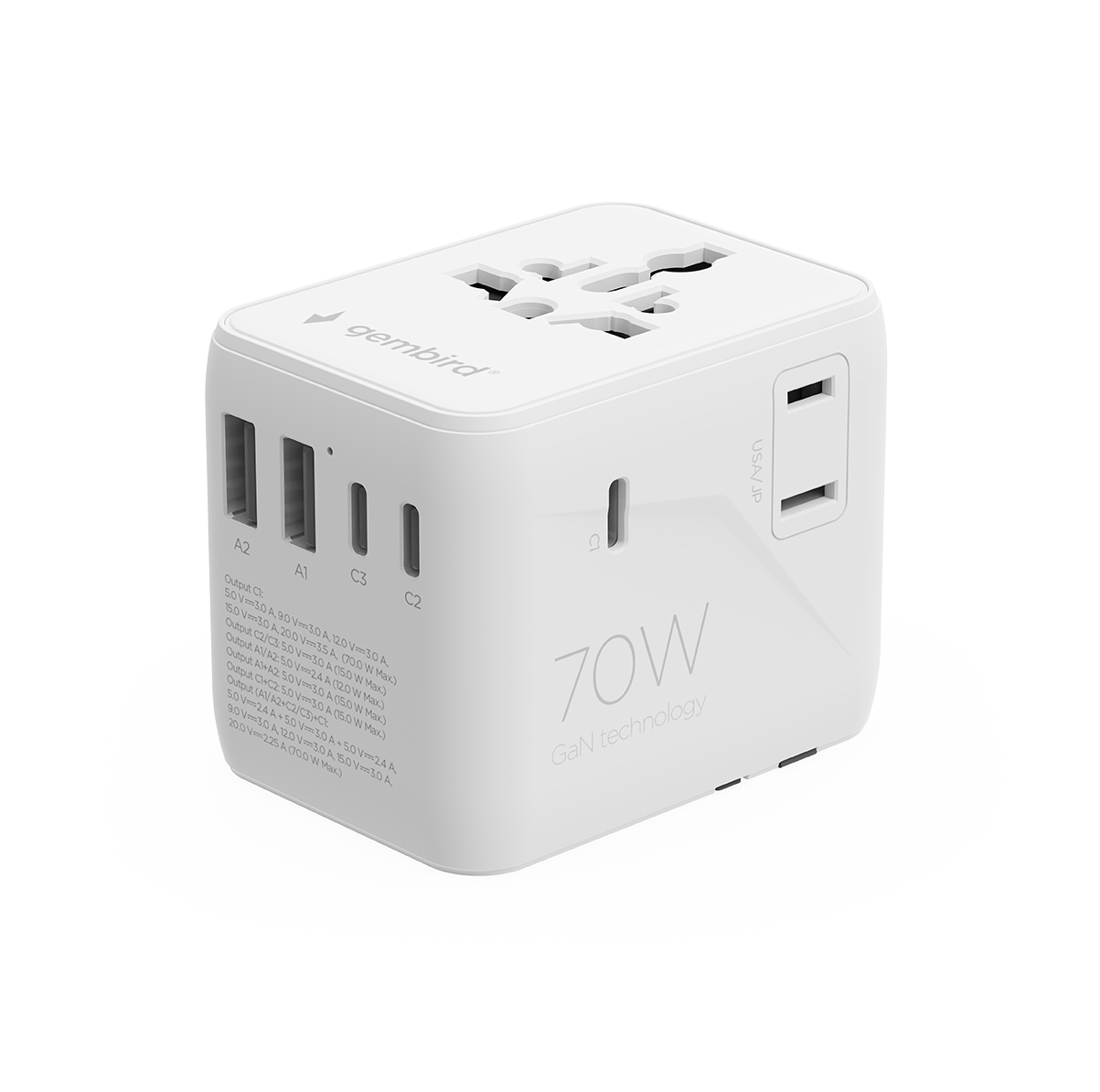

| Output C1: 5.0V=3.0A, 9.0V=3.0A, 12.0V=3.0A, 15.0V=3.0A, 20.0V=3.5A (Max. 70.0W) |
| Output C2/C3: 5.0V=3.0A (Max.15.0W) |
| Output A1/A2: 5.0V=2.4A (Max.12.0W) |
| Output A1+A2 : 5.0V=3.0A (Max.15.0W) |
| Output C1+C2 : 5.0V=3.0A (Max.15.0W) |
| Output (A1/A2+C2/C3)+C1: 5.0V=3.0A (15.0W) + 5V=2.4A, 9V=3A, 12V=3A, 15V=3A, 20V=2.25A (45.0W) |
| Standby power consumption: <0.1W |
| Efficiency @ 25% load: >88,19% |
| Efficiency @ 100% load: >91,13% |
| Average active efficiency: >89,66% |
| Fuse: 10 A (BS1362 compliant, spare fuse included)
|
