TA-UC-2A4C-PD75-01-BK

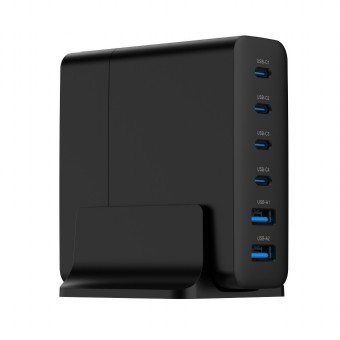

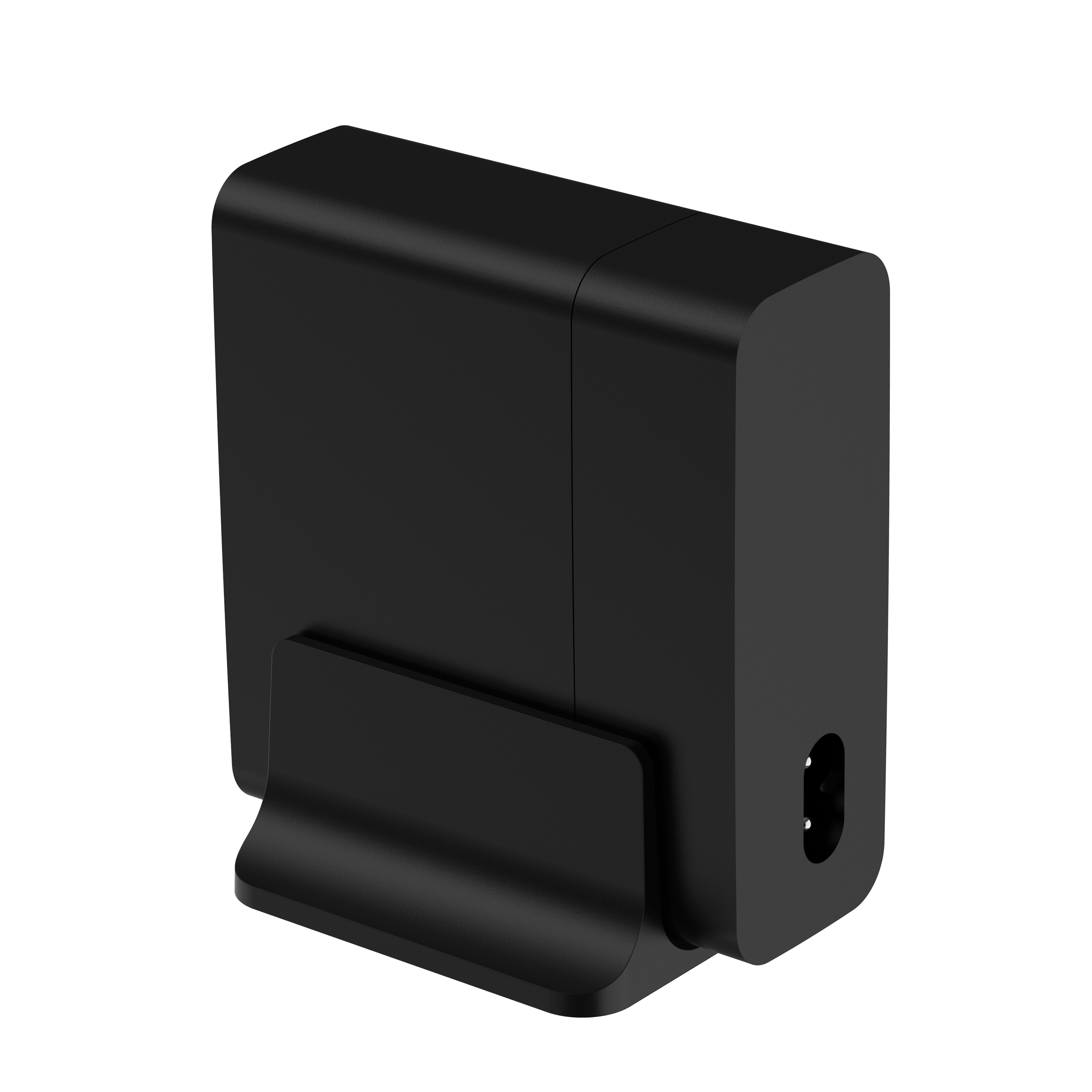

6-port 75W GaN USB fast charger, black

  • A total of 75 W charging power for your smartphones or tablets
  • Type-C port or standard USB port for fast charging most smartphones
  • Supports both USB PD and QC 3.0 fast charging protocol
  • GaN technology enables a more compact energy efficient design


  • 6-port 75 W USB fast charger: supports both QC 3.0 and PowerDelivery (PD) specification
  • GaN technology: compact design and increased energy efficiency
  • Type-C ports support 25 W PD, Type-A ports supports 18W QC 3.0
  • Intelligent over-current, over-voltage, short circuit and overheat protection
  • Includes practical desktop stand and power cord
Specifications
Input voltage: 100-240 V~ 50/60 Hz, 2.0 A
Output ports: 3x USB Type-C, 1x USB-Type-A
USB-C1/C2/C3/C4: 5.0V / 3A, 9.0V / 2.77A, 12V / 2.08A (Max. 25W)
USB-A1/A2: 5.0V / 3.0A, 9.0V / 2.0A, 12.0V / 1.5A (Max. 18W)
USB-C1+C4: 5.0V / 3.0A (Max. 15W)
USB-C2+A1: 5.0V / 3.0A (Max. 15W)
USB-C3+A2: 5.0V / 3.0A (Max. 15W)
C1/C4+C2+C3:25W+25W+25W (Max. 75W)
USB-(C1+C4)+(C2+A1)+(C3+A2)= 5.0V / 3.0A+5.0V / 3.0A+5.0V / 3.0A (Max. 45W)
Standby power consumption: <0.1 W
Average efficiency: >86 %
Efficiency at 25% load: >87 %
Efficiency at 100% load: >85.6 %
Output protection: short circuit, over-voltage, overcharge, overheat
Power cord length: 1.5 m
Dimensions: 80 mm x 60mm x 85 mm
Net weight: 247 g

System requirements
The fast charging function is only available for devices that support fast charging
Manuals
Helpdesk Email [email protected] (Monday to Friday from 9:00 AM to 5:00 PM (NL time) excluding holidays)
manual manual_210x290 (398 kb)

Packing details
Q'ty in crtn, pcs48
Crtn volume, CUM0.041943
Crtn weight, kgs6.66
Individual package size LxWxH:45x80x120 mm
Carton size LxWxH:410x310x330 mm
Country of originCN
Barcode8716309133876
Customs code8504408390
Packaginggiftbox with a hanger
