MA-DA1P-01

Adjustable desk display mounting arm, 17”-32”, up to 9 kg

  • Position your screen perfectly
  • Lightweight and tilting design


  • Monitor desk mount with single monitor arm
  • Arm rotates, extends and retracts, tilts to change reading angles, and allows to rotate display from landscape-to-portrait mode, etc
  • Enables easy ergonomic positioning for reduced strain
  • Works with almost any LCD monitor (max. 32")
  • Durable adjustable gas-spring suitable for monitors of 1 - 9 kg
  • Built-in cable management for an organized and neat workspace
  • Strong desk clamp or grommet for easy and secure fixation on your desk
  • Detachable VESA plate enables easy installation
  • VESA compatible (100 x 100 mm and 75 x 75 mm)

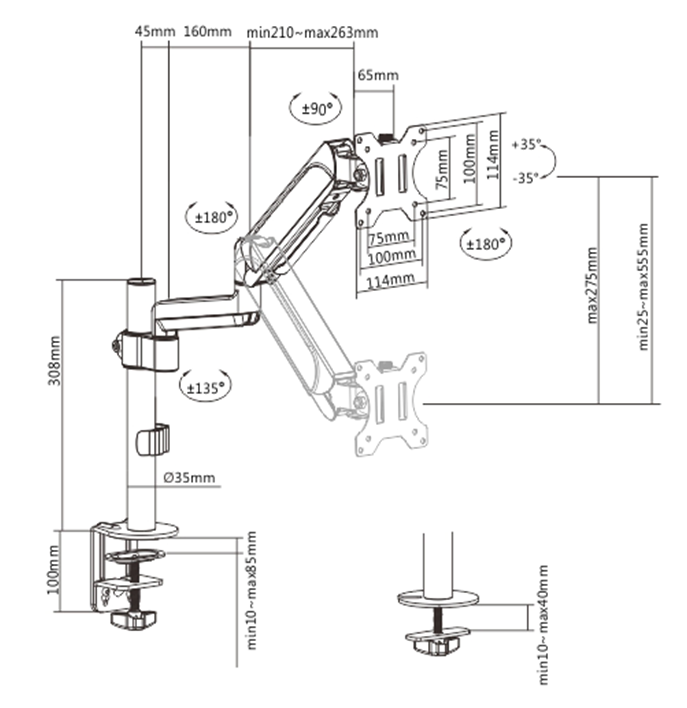

Specifications
Material: steel, plastic, aluminum
Surface finish: powder coating
Color: fine texture black
Fit screen size: 17" - 32"
Weight capacity (per screen): 1 ~ 9 kg
Vesa compatible: 100x100, 75x75 mm
Tilt range: +35° ~ -35°
Swivel range: +90° ~ -90°
Screen rotation: +180° ~ -180°
Installation: grommet, clamp
Suggested desktop thickness: clamp:10 ~ 85 mm, grommet:10 ~ 40 mm
Cable management: yes
Net weight: 3.3 kg

Manuals
Helpdesk Email [email protected] (Monday to Friday from 9:00 AM to 5:00 PM (NL time) excluding holidays)
manual (11833 kb)

Package contents
Desk arm
User manual
Mounting tools bag
Packing details
Q'ty in crtn, pcs4
Crtn volume, CUM0.0454034
Crtn weight, kgs16.13
Individual package size LxWxH:395x215x112 mm
Carton size LxWxH:452x410x245 mm
Country of originCN
Barcode8716309126137
Customs code8302500000
Packagingcolor box
